Diamond Cut Wheel Lathe
Parameter:
Model: WRC28
Max. Wheel Size: 28 inch
Motor Power: 7.5 kw
Brand:
YZ CNC
Abstract:
Diamond cutting alloy wheel repair cnc lathe, alloy rim repair cnc lathe.
Specification
Order Inquiry
Video
More Images

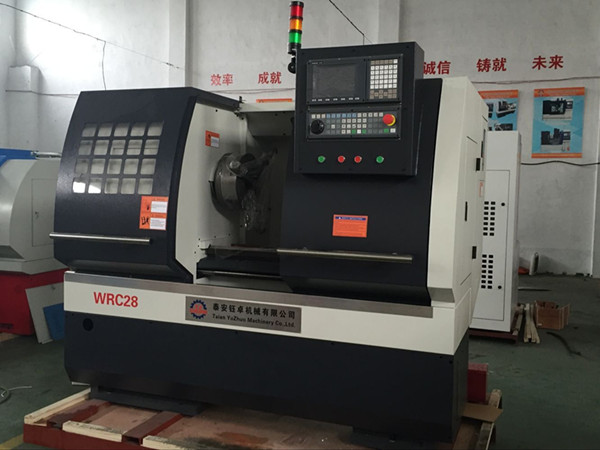

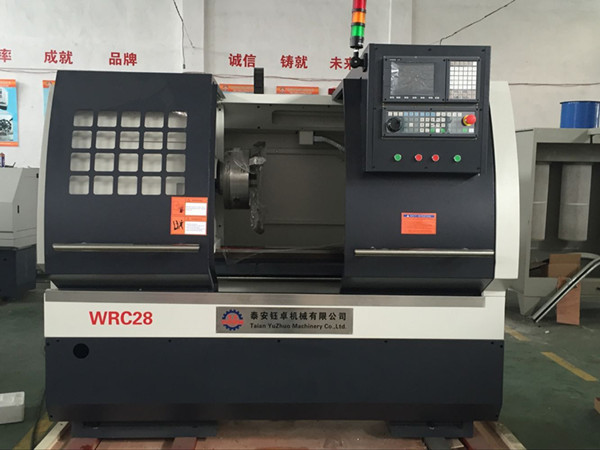

Alloy Wheel Repair CNC Lathe, Alloy Rim Repair CNC Lathe.

Model

WRC28

Max. swing over bed

Φ770mm (30’)

Max. size of alloy wheel

Φ720mm (28’)

Adjustable stroke of carrier in X direction

100mm

Cross slide travel

390mm

Width of the rail

300mm

Length of the rail

1300mm

Size of the 3-jaw chuck

12’

Range of spindle speed

50~2000rpm

Spindle speed control

Automatic

Spindle bore

Φ82mm

Taper of spindle bore

1:20 (Φ90)

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

(Z) long 0.001mm

(X) cross 0.001mm

Moving speed of post

(Z) long 8m/min

(X) cross 6m/min

Motor power

7.5kw

Machine base

Whole cast iron base

Machine size (L*W*H)

2140*1600*1860mm

Packing size

2300*1750*2100mm



Standard Configuration:
1- 3-Jaws Chuck(With Special Soft Jaws)
2- Manual Quick Change Toolpost ,four-station turret,
3- Automatic lubrication system,
4- Turning the cooling system.
5- With probing system (TP300 Pioneer Sensing Probe TP300);
6- Diamond Cutter 1 set
7- CNC controller syntec
8- Full Enclose (Security Guard Door)
9- Specific Digital Optimization Software
10- Training Video CD
11- Work Lighting System



Services:

1- After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2- Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3- Mechanical Support
4- Software Support
5- Comprehensive Training
6- Probe alloy wheel profile


Just PROBE & Diamond CUT !
Once the machine has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!



The Machine Work Steps:

1- Probe alloy wheel profile, transformation G code.
2- Diamond cut the wheel.
